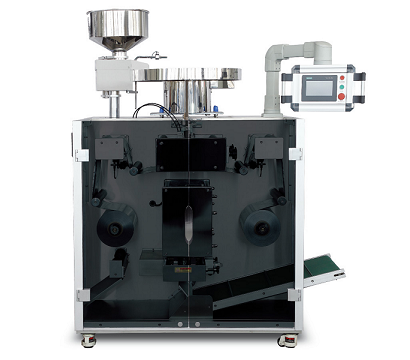

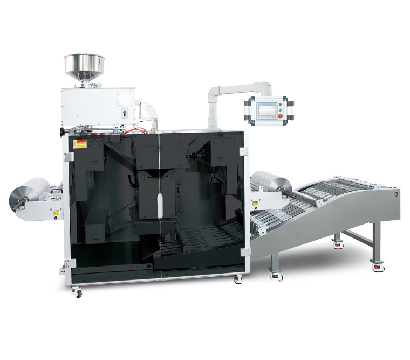

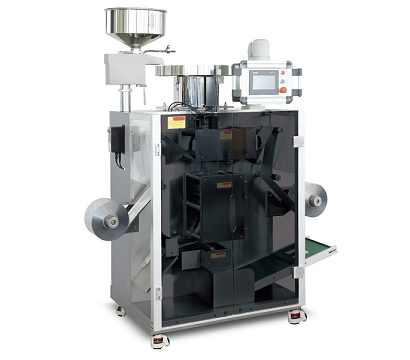

This automatic strip packing machine is suitable for the automatic dual aluminum foil heat-sealing packaging of block-shaped materials such as capsules, tablets, candies, or pills in the pharmaceutical, health products, chemical, and food industries.
It ensures that the packaged products meet the requirements of airtightness and light protection.
This product has passed the inspection of the Pharmaceutical Machinery Testing Center of the National Medical Products Administration and complies with GMP standards.
Meeting the reguirement of sealing for avoiding ight, and also it can be used in plastic-plastic heat sealing package, lt automatically completes the functions such as vibrating material feeding, broken piece filtering, counting, lengthways and transverse impressing, cutting margin scrap, batch number printing etc.
lt adopts PLC programmable controller, with frequency converter, man-machine interface to operation, and also can adjust cutting speed and travel range at random, it is accurate feeding, tight sealing, full purpose, stable performance, ease of operation.
| Model | SLB-160 | SLB-220 | SLB-300 | SLB-400 |
|---|---|---|---|---|
| Speed Of Drum | 7-15rpm (stepless) | 7-15rpm (stepless) | 7-15rpm (stepless) | 7-15rpm (stepless) |
| Diameter of Drum | 100mm | 100mm | 100mm | 100mm |
| Packing Width | 160mm | 220mm | 300mm | 400mm |
| Electro Thermal Power | 1.5kW x 2 | 1.8kW x 2 | 2.5kW x 2 | 3kW x 2 |
| Main Motor Power | 0.37kW | 0.75kW | 0.75kW | 0.75kW |
| Voltage | 220/380V, 50/60Hz | 220/380V, 50/60Hz | 220/380V, 50/60Hz | 220/380V, 50/60Hz |
| Air Compressor | 0.5-0.6Mpa, ≥0.1m³/min | 0.5-0.6Mpa, ≥0.1m³/min | 0.5-0.6Mpa, ≥0.1m³/min | 0.5-0.6Mpa, ≥0.1m³/min |
| Machine Dimension | 1600 x 850 x 2000mm | 1600 x 850 x 2000mm | 1600 x 850 x 2000mm | 1800 x 1120 x 2000mm |
| Machine Weight | 800kg | 900kg | 950kg | 1200kg |
